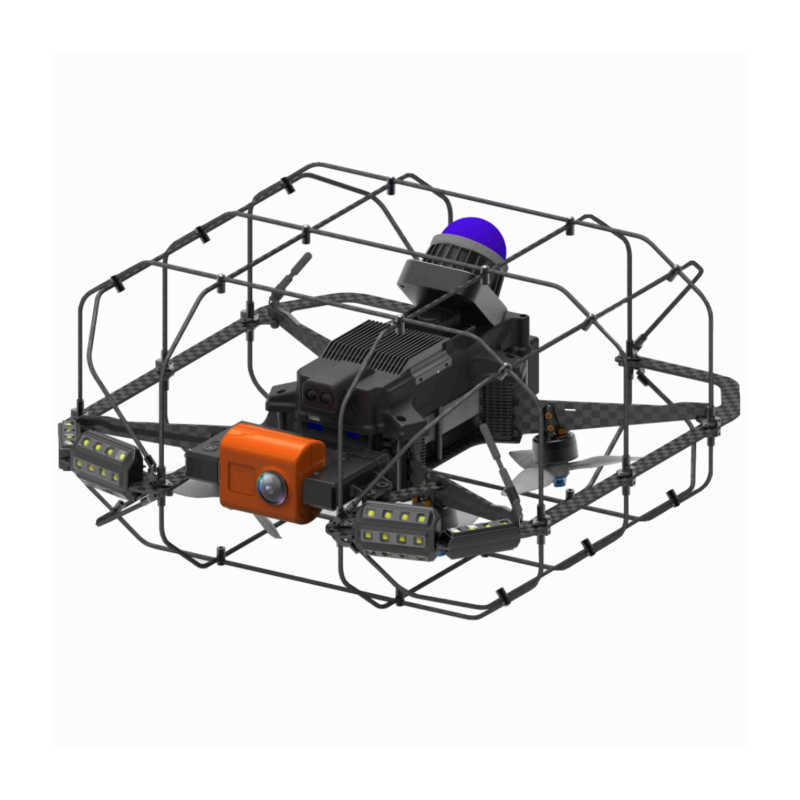

Anti-collision ball inspection drone radar version

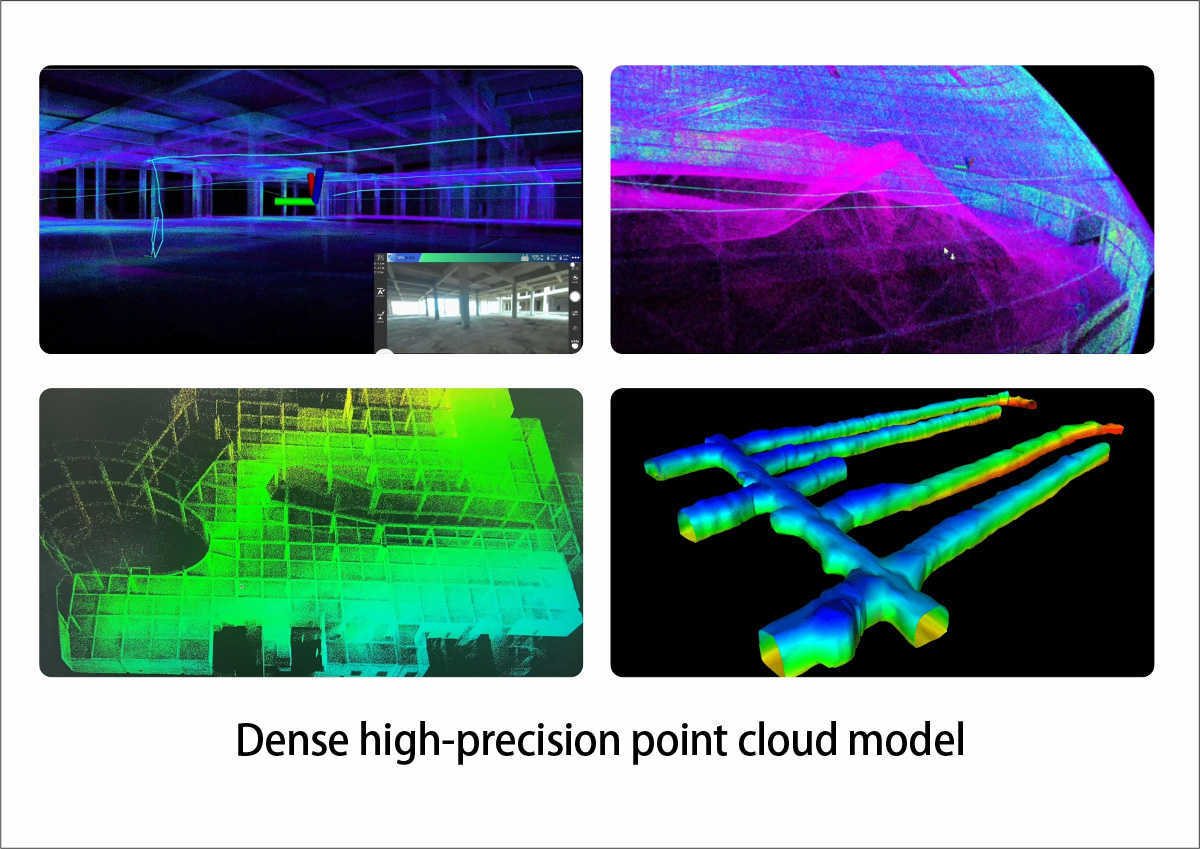

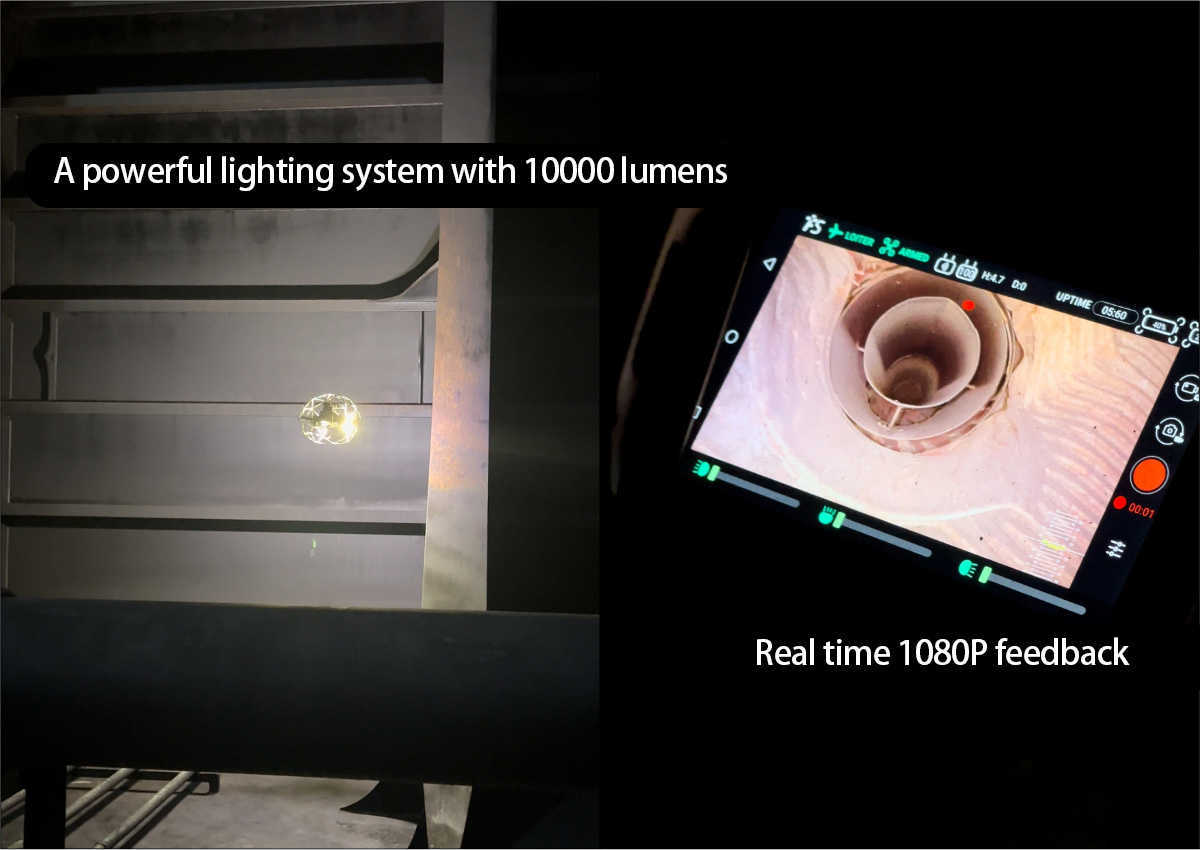

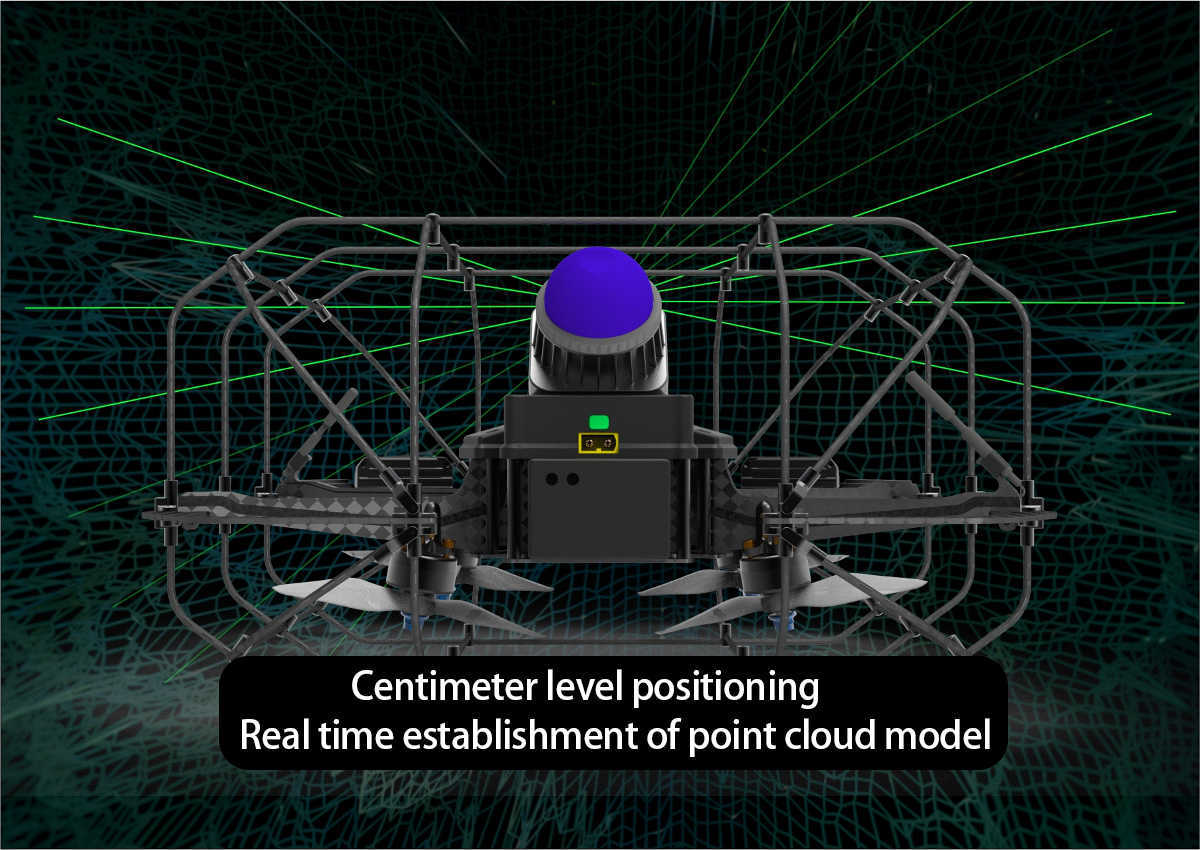

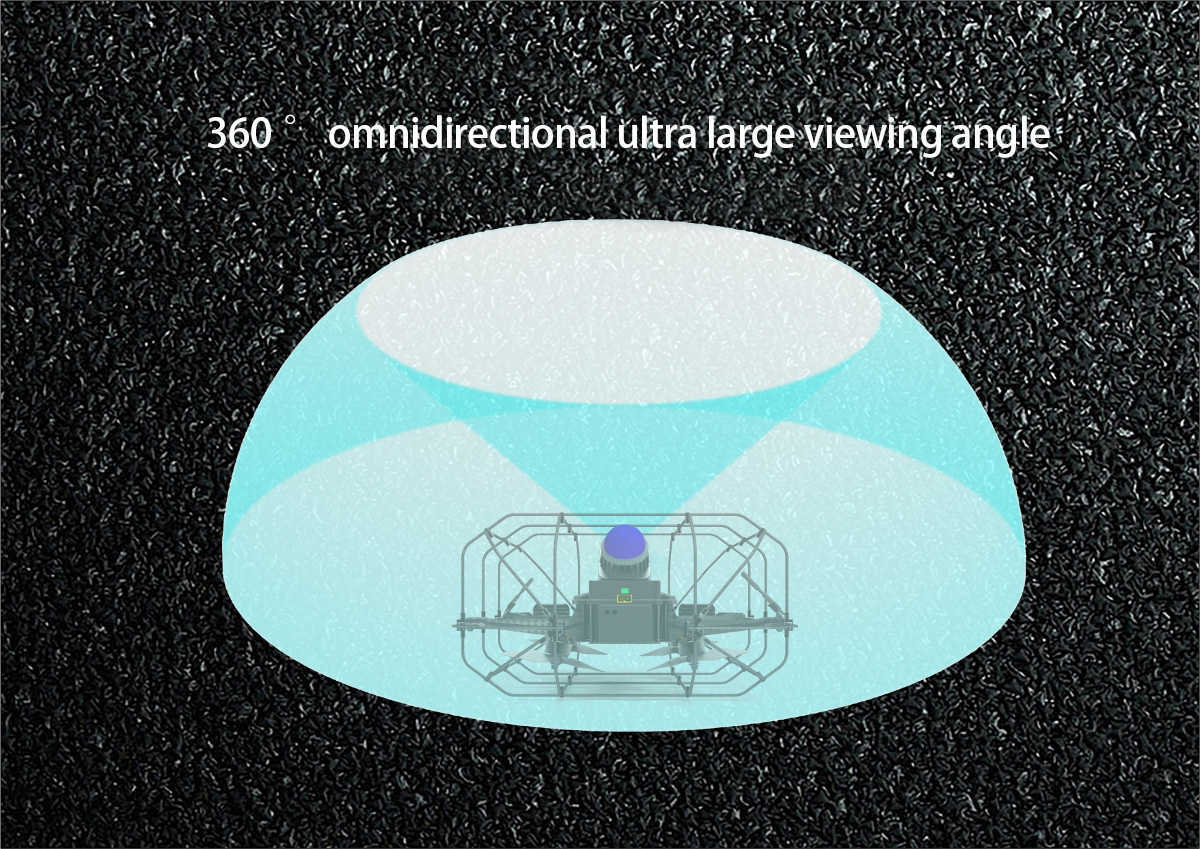

The radar F400 is more stable than the visual version. Its unique algorithm and 10000 lumen LED lighting system can achieve centimeter positioning in dark and GPS-free indoor spaces. Ultra-clear inspection photos and videos are obtained through a 4K camera. The drone has 360-degree omnidirectional sensing capabilities and can generate point cloud images in real time.

Supports more different fiber lengths

1 km light disk
Size:79.6mm (diameter)*152mm
Case material: Carbon fiber
Optical fiber specifications: 0.43mm
Weight: 340g (1 km)
Outlet port: None


2/3km light disk
Size:101.6mm(diameter)*274mm
Case material: ABS
Optical fiber specifications: 0.43mm
Weight: 600g(2km)/800g (3km)
Outlet nozzle: Aluminum alloy nozzle, carbon tube 5cm

5km light disk
Size: 101.6mm(diameter)*351Mm
Case material:ABS
Optical fiber specifications:0.43mm
Weight: 1250g (5km)
Outlet nozzle: Aluminum alloynozzle, carbon tube 5cm

10km light disk
Size:142mm (diameter)*404 mm
Case material: Carbon fiber
Optical fiber specifications: 0.43mm
Weight:2450g(10km)
Outlet nozzle: Aluminum
