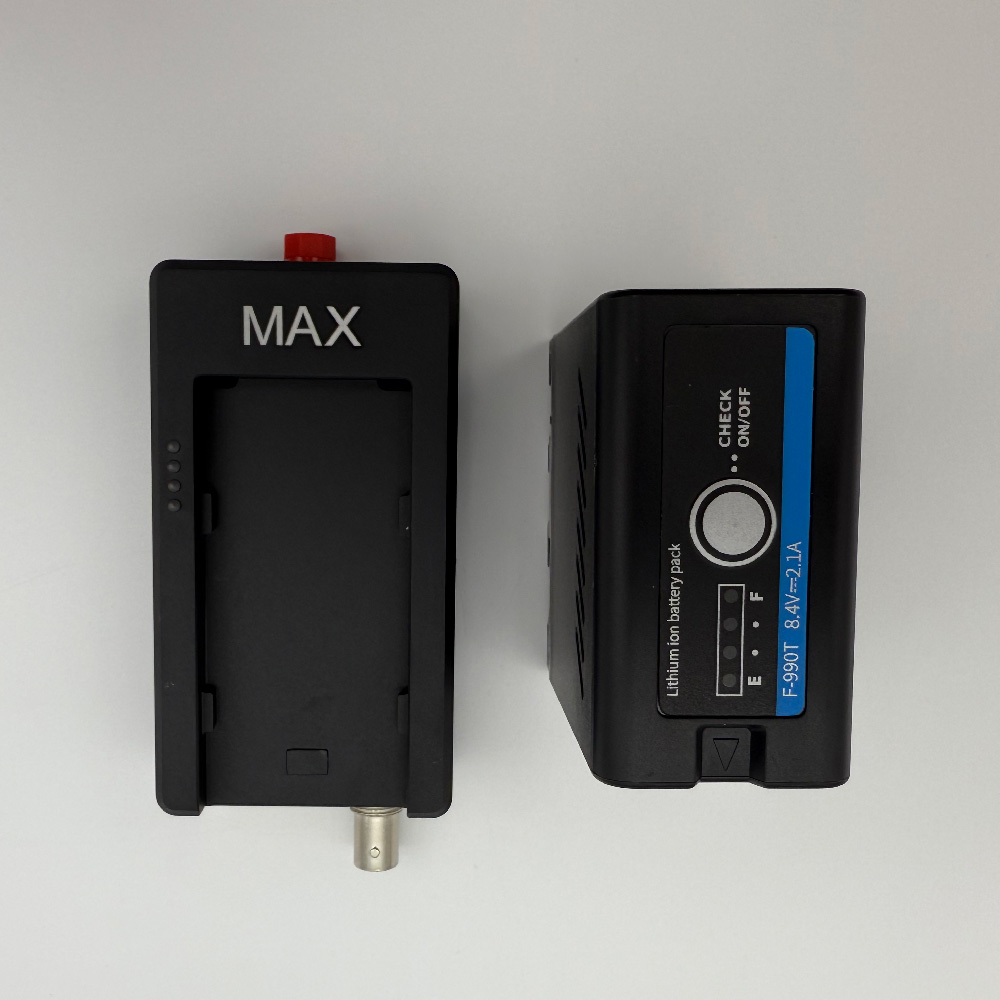

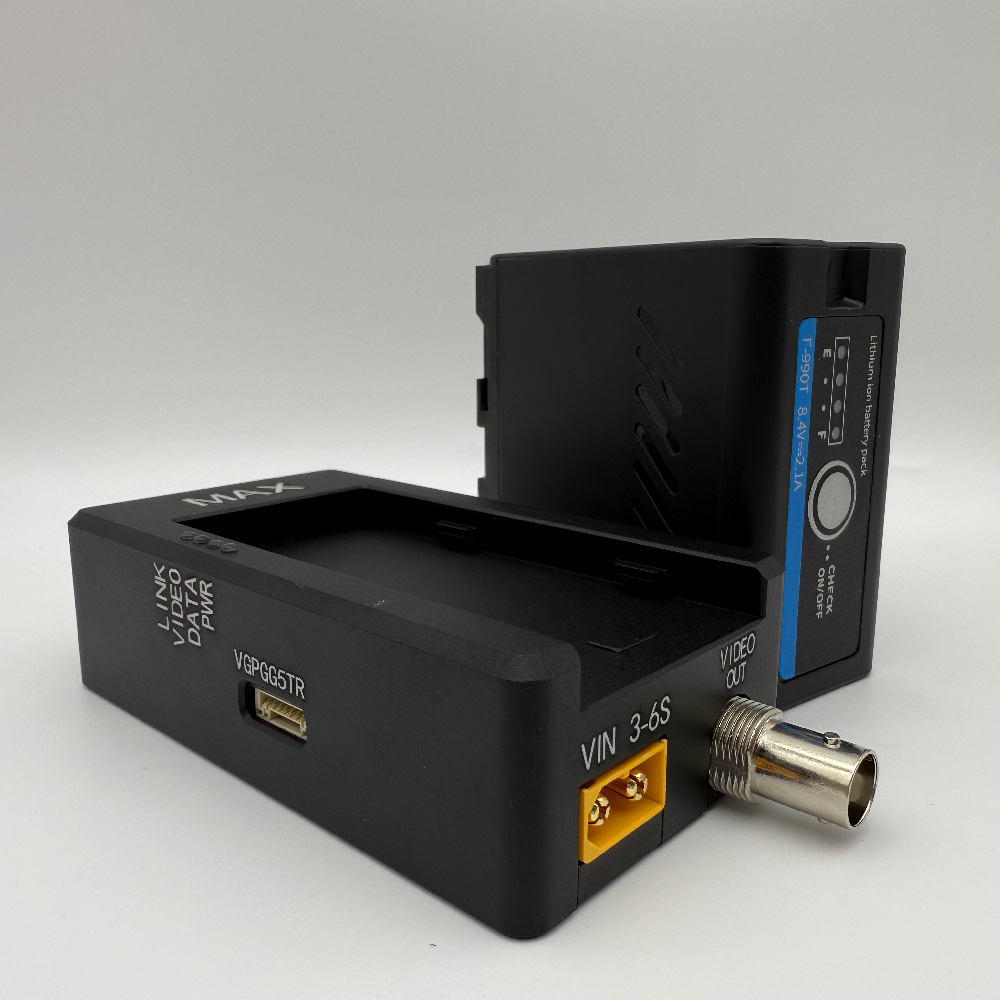

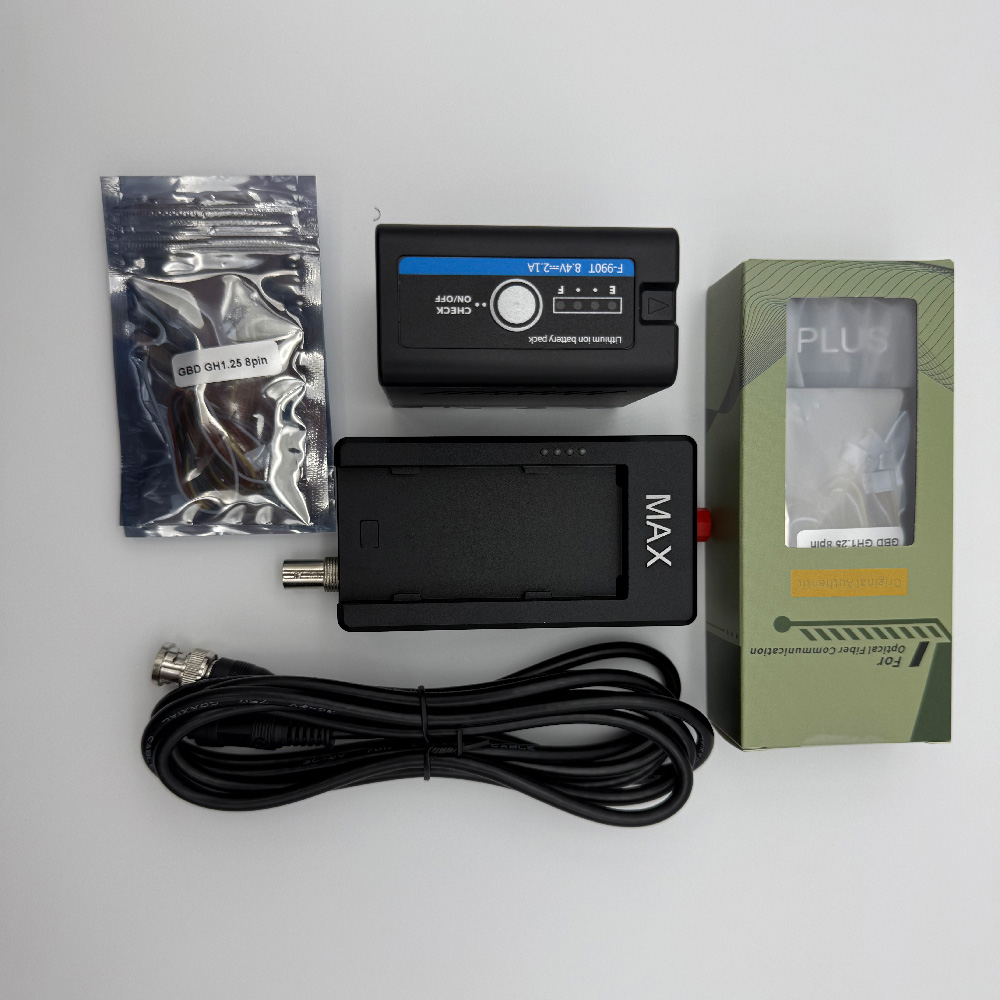

Opticallink GBD -MAX
No feature found
| Specification | Value |
|---|---|
| Product name | Fiber optic images and data GBD |
| Battery | Li-ION 7.4V 6600mAh |
| Shell material | Aluminum alloy |
| Body size | 123 mm × 56 mm × 31 mm |
| Body weight | 186 g ± 2 g |
| Optical Fiber interface | FC interface |
| Fiber type | Single mode — Single Fiber |
| Data interface | GH1.25 |
| Video format | NTSC / PAL / SECAM |
| Data direction | Bidirectional |
| Data format | TTL / S.BUS |
| Speed | 0 ~ 1 Mbps |
| Wavelength (single mode) | 1310 nm (9/125 m) + 1550 nm |
| Transmission distance | Single mode fiber: 0 – 60 km |
