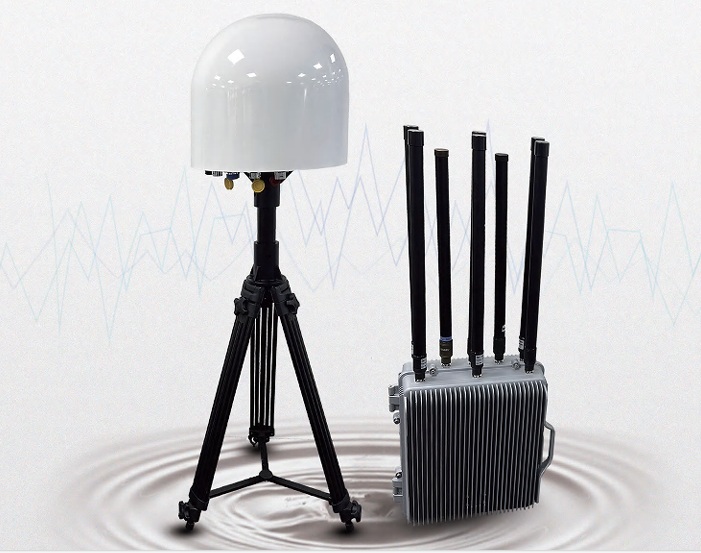

The device is based on multi-sensor fusion technology and integrates various techs such as radio detec- tion, protocol decoding, electromagnetic jamming, navigation spoofing, and networked supervision. It combines scanning, detection, jamming, and spoofing into one unit, enabling linkage between one de- tection unit and multiple jamming units. This allows for the establishment of a comprehensive detection and defense system, meeting diverse low-altitude defense needs both domestically and internationally.
| Specification | Details |
|---|---|
| Detection frequency band | 70MHz–6GHz full-frequency scanning, detection and display |
| Key detection frequency bands | 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (210km, depends on working conditions) |
| Detection range | 10km (depends on working conditions) |
| FPV video transmission detection | 500MHz–6GHz full-frequency scanning, detection and display |
| Video transmission detection range | 1.5km (supports viewing real-time video) |
| Azimuth range | Horizontal: 360°, Pitch: 90° |
| Jamming frequency bands |
700MHz–840MHz, 860MHz–930MHz, 1080MHz–1200MHz, 1200MHz–1340MHz, 1560MHz–1620MHz, 2385MHz–2490MHz, 5100MHz–5300MHz, 720MHz–5860MHz |
| Jamming distance | 23km (depends on working conditions) |
| Spoofing radius | 1–3km+ (depends on environment and drone model) |
| Spoofing signal | GPS, GLONASS, BD |
| Spoofing activated time | 4s |
| Direction finding accuracy | S+3RMS° |
| Operating temperature | 40°C to +60°C |
| Weight | Detection device: 15kg |
| Size |
Detection device: 400mm × 370mm (diameter × height) Jamming device: 465mm × 275mm × 510mm (L × W × H) |
